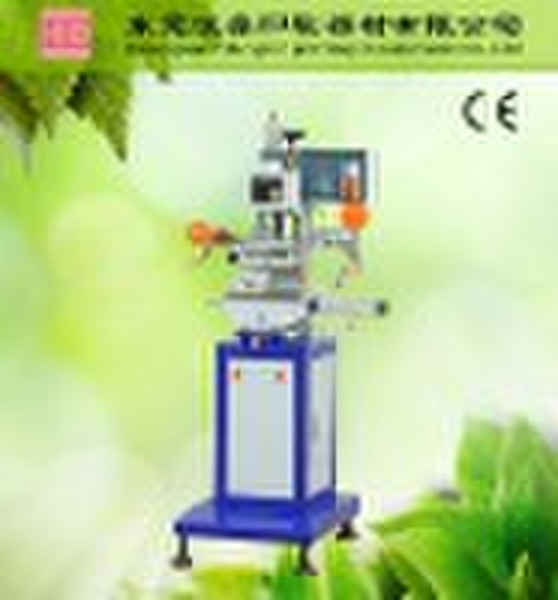

HX-168S Hot stamping machine

HX-168S Hot stamping machinePneumatic flat / cylindricalheat pressmachine Technical parameters: Hot plate size: 100 × 168mm Table size: 108 × 108mm Max hot stamping area: dia 75mm Stamping first stroke: 25mm Stamping Temperature range: room temperature -280 degrees Maximum workpiece height: 200mm Stamping pressure range of options: <130kgf Maximum stamping speed: 1000pcs/hr Power: 220V 50HZ Heating power: 900W Air pressure :4-7bar Air consumption: <58L/min Dimensions: 630 × 580 × 1385mm Features: 1, microcomputer control, pneumatic drive. 2, stamping pressure, temperature, time,.can be adjusted 3,worktable manually before and after the move, easy to operate safe and fast. 4, worktable can rotate adjusted in front and back 5, automatically send the stamping paper and receive paper, and can be adjusted 6, according to the different height of the workpiece can be separately adjusted by the handle and the cylinder head stamping process of adjusting the height of nut and cylinder stroke. 7, for stamping a round face and the workpiece; unload shuttle table shall be flat hot stamping machine.
